Tutorial: Push Data Connector

Build a Foundry app that programmatically ingests external security data into a Falcon LogScale repository. This enables searching custom data alongside native Falcon telemetry in Next-Gen SIEM.

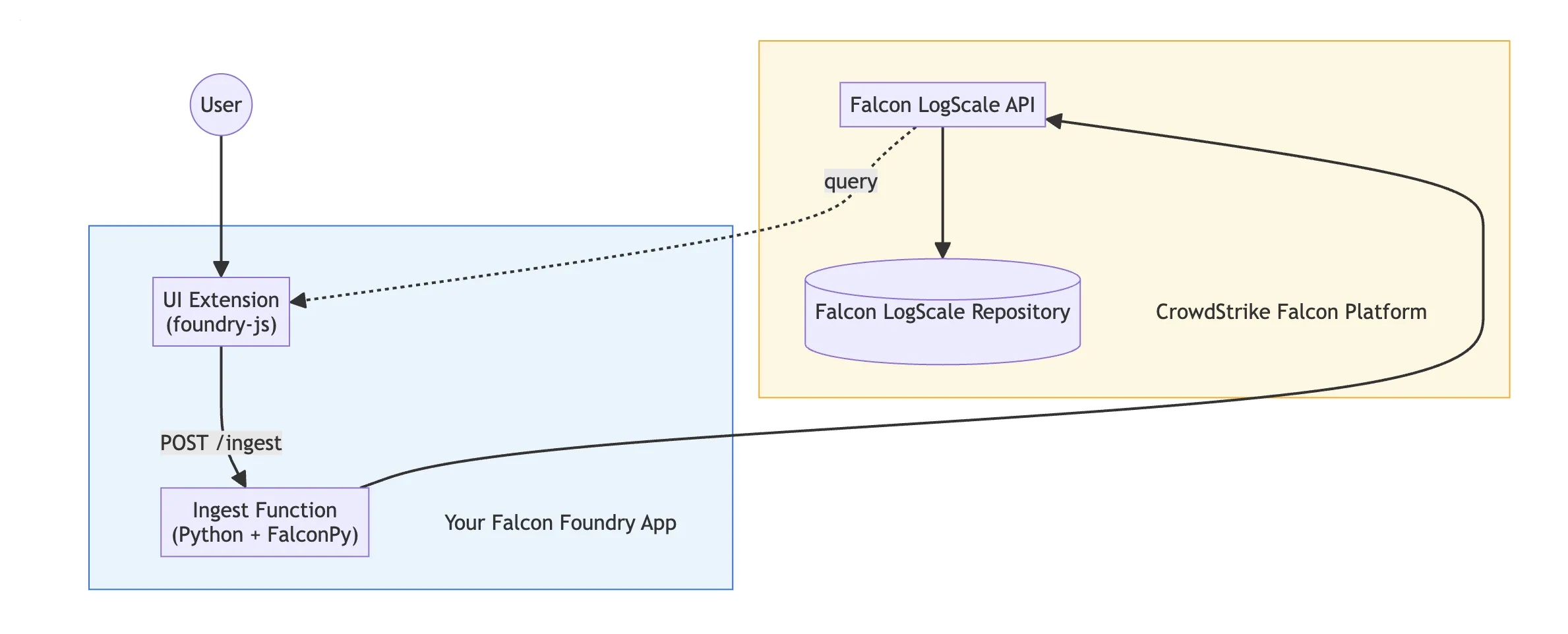

What you’ll build

A Foundry app that:

1. Defines a Python function to call an external API and transform the data
2. Ingests the transformed data into a LogScale repository
3. Includes a UI extension for ad-hoc data submission
4. Optionally schedules automatic ingestion via a Fusion SOAR workflow

Prerequisites

• Falcon Foundry entitlement
• Falcon Administrator or Foundry App Developer role
• Foundry CLI installed
• Python 3.10–3.12

Step 1: Create the app

foundry apps create --name "Custom Data Connector"

Step 2: Create the ingestion function

foundry functions create --language python --name ingest-data

Edit functions/ingest-data/handler.py:

from falconpy import FoundryLogScale

def handle(request, config):
    logscale = FoundryLogScale()

    # Transform input data into LogScale events
    events = []
    for record in request.body.get("records", []):
        events.append({
            "event": {
                "source": "custom-connector",
                "category": record.get("category", "unknown"),
                "message": record.get("message", ""),
                "severity": record.get("severity", "info"),
            }
        })

    # Ingest into LogScale
    result = logscale.ingest_data(body=events)

    return {
        "body": {
            "status": "ingested",
            "count": len(events),
        },
        "code": 200,
    }

Step 3: Configure API scopes

Add the required scopes to manifest.yml:

auth:
  scopes:
    - scope: foundry-logscale
      permission: write
      description: "Ingest custom data into LogScale"

Step 4: Test locally

foundry functions run --name ingest-data --data '{
  "body": {
    "records": [
      {"category": "threat-intel", "message": "Test IOC detected", "severity": "high"}
    ]
  }
}'

Step 5: Deploy and verify

foundry apps deploy
foundry apps release

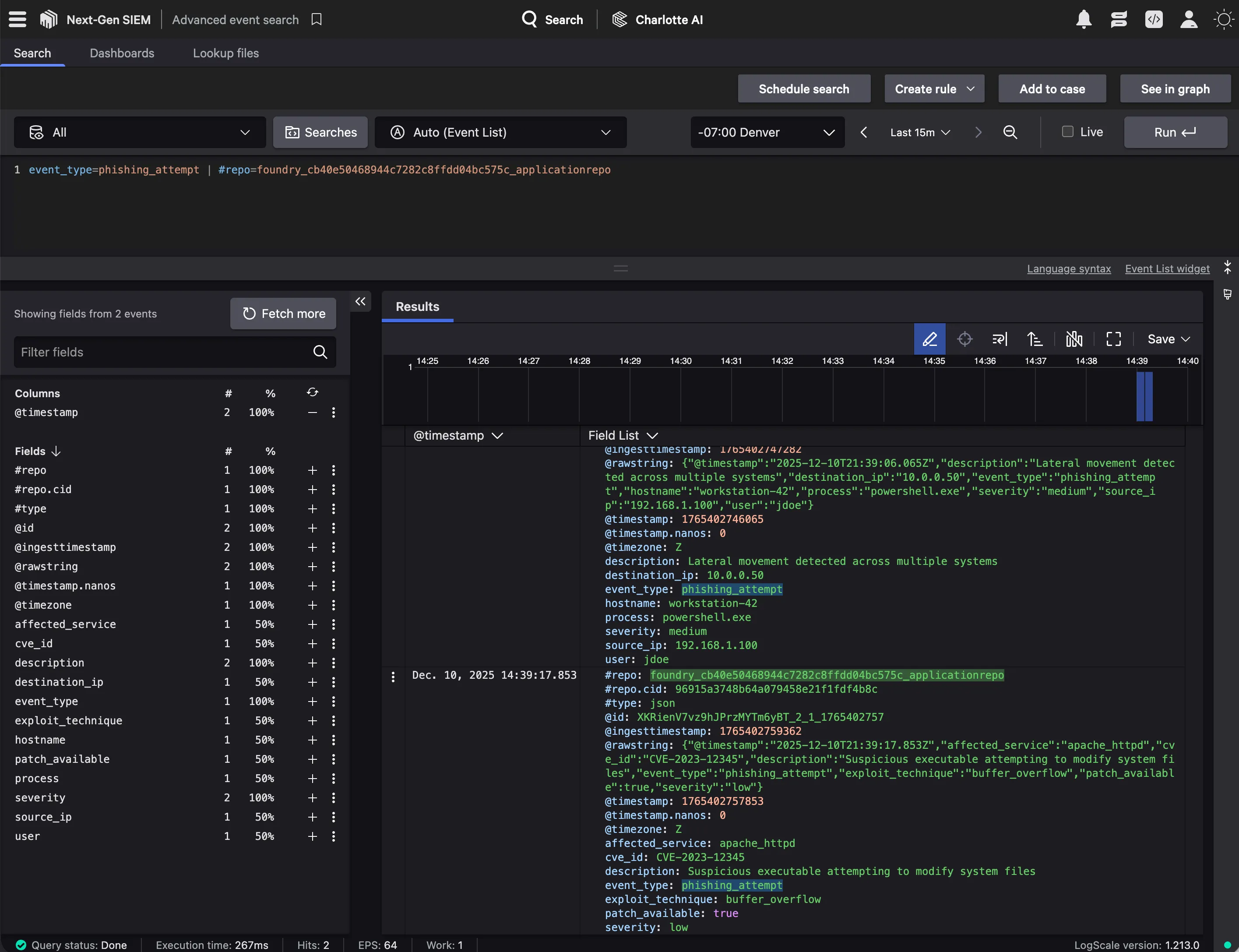

After installation, verify the data appears in Next-Gen SIEM:

1. Go to Next-Gen SIEM > Advanced Event Search.
2. Query for your ingested events:

   source="custom-connector"

Optional: Schedule automatic ingestion

Create a Fusion SOAR workflow that:

1. Triggers on a schedule (e.g., every 15 minutes)
2. Calls an external API via an API integration or HTTP Action
3. Passes the response data to your ingestion function
4. The function transforms and ingests the data into LogScale

Next steps

• Build a dashboard to visualize the ingested data
• Add a collection to track ingestion state and avoid duplicates
• Write a CrowdStrike parser to normalize the ingested data for cross-correlation
